PSA GUI Visual Reference
The following dialog in PSA provides access to its functionality. Click on an area of the figure to learn more about the item.

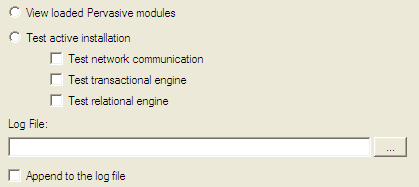

Figure 29
PSA Main Dialog
GUI Object
Description
Related Information
View loaded Pervasive modules
Displays all current Pervasive PSQL components and version information in a table. Also allows you to add additional components to the matrix.
View Modules Tasks
Test active installation
Test the Pervasive PSQL installation in three ways: network connectivity, functionality of the transactional interface, and functionality of the relational interface. Select the options that correspond to the tests you wish to perform.
Test Active Installation Tasks
Test network
Test the network connectivity to a machine running the database engine. The network tests display detailed information about any problems encountered during the test and provide suggestions on how to remedy the problems.
If you do not have Internet Explorer installed, this test is not available because the test uses an embedded HTML component to display results.
To test your network
Test transactional engine
Tests the functionality of the transactional interface (Btrieve) to the database engine.
To test the transactional interface
Test relational engine
Tests the functionality of the relational interface (SQL) to the database engine.
To test the relational interface
Log file
Allows you to specify a different log file location than the default. PSA logs detailed information on the tests it performs. You can use this log file to review tests at a later time or to forward them to Pervasive Technical Support for further review.
The
Append to the log file
option adds content to the end of the log file to provide a running history. If this option is cleared, the log file starts anew and only information from the current PSA session is captured.
To specify a different location for the PSA log file
