Actian Data Intelligence Reference Architecture

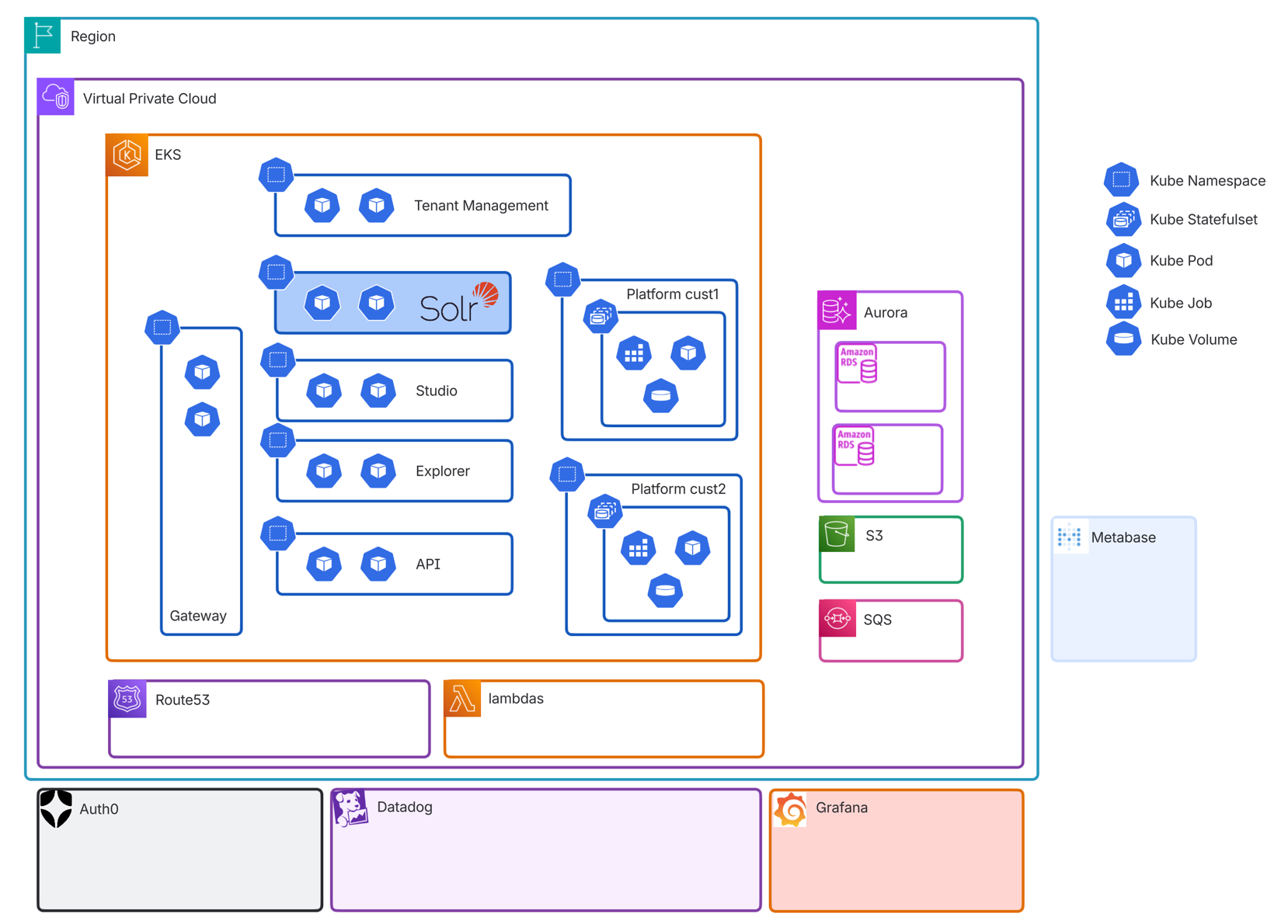

This section provides a high-level overview of the Actian Data Intelligence Platform architecture.

Platform Components

  • Auth0 is an authentication service provider that allows customers to configure Single Sign-On (SSO) for the platform.
  • Datadog is a monitoring platform used to observe and monitor the entire infrastructure.
  • Grafana is another monitoring platform deployed in a customized setup that allows detailed monitoring of the infrastructure.
  • Metabase is the data source for consolidated business metrics. It provides deeper insight into how customers use the platform.
  • Solr is the search engine implementation currently used by the platform. It is deployed on Amazon EKS.
  • AWS (Amazon Web Services) is the core cloud platform that hosts the Actian Data Intelligence Platform.
    • Amazon EKS (Elastic Kubernetes Service) is the Kubernetes implementation used by the platform. All custom platform components are deployed on Amazon EKS. The platform includes:
      • Multi-tenant stateless components
      • Mono-tenant stateful components
    • AWS Lambda hosts stateless microservices that can scale automatically based on demand.
    • Amazon Route 53 is used to declare and manage customer domain names.
    • Amazon Aurora is used as the relational database service.
    • Amazon S3 is used to store short-term files.
    • Amazon SQS (Simple Queue Service) is the queue service used to handle data transfers between the run zone and the analytics zone.
