OpenROAD Server Overview

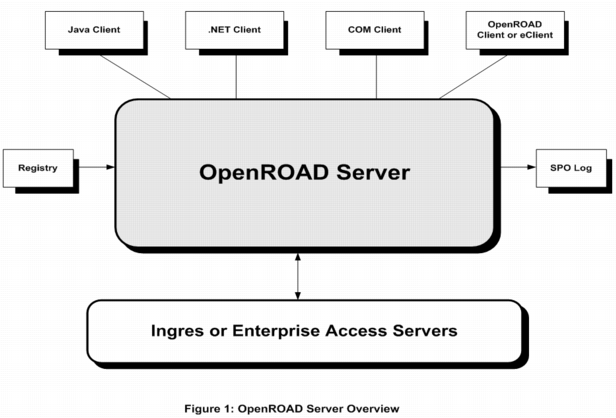

The following figure is a high-level conceptual view of the OpenROAD Server and the components with which it interacts. This figure generally represents the level of detail that a programmer needs to conceptualize the OpenROAD Server.
The components that comprise the OpenROAD Server's universe are:
• OpenROAD Server (see OpenROAD Server)
• OpenROAD Sever clients (see OpenROAD Server Clients)
• Registry (see Registry)
• SPO log (see SPO Log)
• Ingres or Enterprise Access Server (see Ingres or Enterprise Access Servers)
These components are discussed in the following sections.
