Using Connection Failover
Connection failover allows an application to connect to an alternate, or backup, database server if the primary database is unavailable, for example, because of a hardware failure or traffic overload. Connection failover ensures that the data on which your critical .NET applications depend is always available.
You can customize the data provider for connection failover by configuring a list of alternate databases that are tried if the primary server is not accepting connections. Connection attempts continue until a connection is successfully established or until all of the alternate databases have been tried the specified number of times.

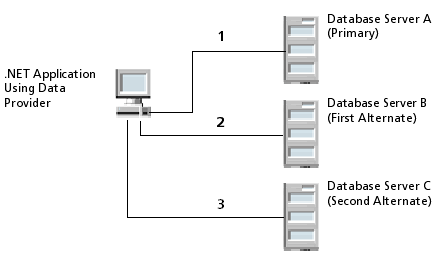

For example, Figure 1 shows an environment with multiple database servers. Database Server A is designated as the primary database server, Database Server B is the first alternate server, and Database Server C is the second alternate server.
Figure 1 Connection Failover
First, the application attempts to connect to the primary database, Database Server A (1). If connection failover is enabled and Database Server A fails to accept the connection, the application attempts to connect to Database Server B (2). If that connection attempt also fails, the application attempts to connect to Database Server C (3).
In this scenario, it is probable that at least one connection attempt would succeed, but if no connection attempt succeeds, the data provider can retry the primary server and each alternate database for a specified number of attempts. You can specify the number of attempts that are made through the connection retry feature. You can also specify the number of seconds of delay, if any, between attempts through the connection delay feature. For more information about connection retry, see Using Connection Retry.
The data provider fails over to the next alternate server only if it cannot establish communication with the current alternate server. If the data provider successfully establishes communication with a database and the database rejects the connection request because, for example, the login information is invalid, then the data provider generates an exception and does not try to connect to the next database in the list. It is assumed that each alternate server is a mirror of the primary and that all authentication parameters and other related information are the same.
Connection failover provides protection for new connections only and does not preserve states for transactions or queries. For details on configuring connection failover for your data provider, see Configuring Connection Failover.
