Redirecting Locator Files
This feature of Gateway engine operation guarantees transaction atomicity for multidirectory databases and also makes it easy to change the name of a Gateway engine across multiple data directories.
Recall that the PSQL client uses the following approach to access remote data files:
1
First, attempt to connect to a database engine on the same computer as the data files.
2
Second, if no database engine is available on the remote machine, attempt to use a local engine to take ownership of the remote directory and create a Locator File. If a Gateway Locator File already exists, the local engine is not used.
3
Third, try to use the specified Gateway engine.
It is important to remember that the Gateway configuration only goes into effect when there is no database engine available on the same computer as the data files.
This feature allows a dynamic (floating) Gateway engine while at the same time preserving transaction durability for multidirectory databases on the same volume. This benefit is provided by a new type of Gateway Locator File that points to another Gateway Locator File. The new type is called a Redirecting Locator File. By having Redirecting Locator Files in directories A, B, and C that point to the Locator File in directory D, you can ensure that the Gateway engine specified by the Locator File in directory D services data files in the other directories as well.
Regardless of whether the Locator file in directory D specifies a permanent Gateway or is dynamically created by the first engine to open those files, this architecture ensures that all the specified directories use the same Gateway engine. Likewise, if you decide to change the permanently assigned Gateway engine for several directories, Redirecting Locator Files allow you to do so by changing only one Locator File, rather than all of them. Thus, it is possible to specify that all data files on a given hard drive must use the same Gateway engine, with or without designating a permanent Gateway.
Redirecting Locator File Requirements
The first line of a Redirecting Locator File must start with “=>” and be followed by a path specifying another Locator File, which must be on the same drive. You can use any combination of forward slash and back slash in the path name. All slashes are converted to the type of separator used by the local operating system.
If your specified path ends with a slash, the database engine assumes the default Locator File name (~PVSW~.LOC) and appends it to the path. If the specified path does not end with a slash, the database engine assumes that the path already contains the file name.
The following table lists the ways a Redirecting Locator File path can be specified:
Table 34
Redirecting Locator File Path Descriptions
Path
Meaning
=>\path_name
Specifies the path from the root of the drive where the current Locator File is stored.
=>.\path_name
Specifies the path relative to the current directory.
=>..\path_name
Specifies the path relative to the parent directory of the current directory.
You can assign multiple levels of redirection to these Locator Files. For example, you can have the first Locator File pointing to a second Locator File, the second Locator File pointing to a third Locator File, and so on. Each workgroup engine opens each Locator File sequentially, looking for the actual Gateway name. It stops searching once it has found the locator file that does not start with “=>”. The engine then assumes this Locator File specifies the Gateway engine.
Creating Redirecting Locator Files
As with any Locator File, a Redirecting Locator File is a plain text file. You can create Redirecting Locator Files by hand or programmatically. A Redirecting Locator File must be flagged as read-only, or it will be overwritten by the first engine to attempt to access the data files in that directory.
►
To Create a Redirecting Locator File
1
Open Notepad or a text editor, and open a new text file.
2
Decide where you are going to save the file when you are finished. You will save the file in the same directory as the data files which you want to redirect to another locator file.
For example, if you want to ensure that the data files in C:\data are accessed by the same Gateway engine as other data files, then you will want to keep in mind the folder C:\data.
3
Type in => and the path name of the next Locator File. Continuing the example from the previous step, if you want the current data files in C:\data to be owned by the Gateway engine specified in the Locator File located in c:\moredata, then you would type the following:
=>..\moredata\ (recommended) or
=>\moredata\ (not recommended)
In the first case, you are specifying a relative path from the current directory. In the second case, you are specifying an absolute path from the root of the current drive. In this particular example, both cases resolve to the same target directory.
*Note: It is strongly recommended that you use relative path names (starting with ./ or ../) in your Redirecting Locator Files, and that you use the same share names on all workstations to access the same data. Following these two recommendations can prevent errors that may occur with network path name resolution over mapped drives.
4
Save the file as ~PVSW~.LOC in the directory where the data files exist that you want to specify a Gateway engine for.
5
Close Notepad or the text editor.
6
Flag the text file as read-only.
To mark the file as read-only on Windows, you can use the Properties dialog box (right-click the file icon) in Windows Explorer, or you can use the ATTRIB command in a DOS session or in a program:
ATTRIB +R ~PVSW~.LOC
►
To synchronize many data directories on a permanent Gateway
1
Either by hand or by using the Gateway Locator program, create a read-only (permanent) Locator File that does not redirect. It must specify a Workgroup engine to use as the Gateway.
For example, your locator file may specify the computer named workgroup1 as the Gateway engine, and the file may be located in C:\DATA\DB1.
2
For each of the other data directories that you want to use the Gateway engine specified in the previous step, you need to create a Redirecting Locator File in that directory. Each Redirecting Locator File must point to the file you created in the previous step.
Continuing the example, each Redirecting Locator File in C:\DATA\DB2 and C:\DATA\DB3 would then contain the following text:
=>..\DB1\
This causes any engine reading this file to follow the relative path and search the specified directory C:\DATA\DB1 for another Locator File. In this case, the specified directory contains a Locator File that names workgroup1 as the Gateway computer.
►
To synchronize many data directories on a dynamic Gateway
1
Follow the steps above, only in step #1, ensure that the Locator File is writable, not permanently-assigned.
In this case, remember that if no engines are accessing any data files in the redirecting hierarchy, then there will be no Locator File in the target directory. This is normal. The dynamic Locator File is created each session by the first engine to access the data, and the file is deleted when the last user session ends. It is permissible to have Redirecting Locator Files that point to a data directory that has no Locator File in it. In this case, the first engine to open those data files creates the Locator File.
Example

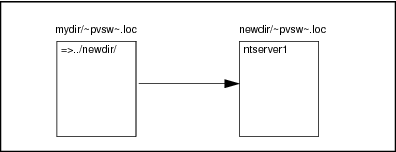

Using the example Locator Files shown in Figure 4, the Redirecting Locator File on the left forces the database engine to go up one directory, then look in the sub-directory newdir for another Locator File with the default name (~PVSW~.LOC). This Locator File, in turn, specifies that the Workgroup engine on the computer named ntserver1 is the correct Gateway engine. As a result, the database engine on ntserver1 is used to access the data files in the directory mydir.
Figure 4 Redirecting Locator File Example
