PSA GUI Visual Reference

The following dialog in PSA provides access to its functionality. Click on an area of the figure to learn more about the item.

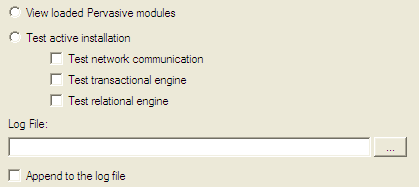

Figure 26 PSA Main Dialog


GUI Object	Description	Related Information
View loaded PSQL modules	Displays all current PSQL components and version information in a table. Also allows you to add additional components to the matrix.	View Modules Tasks
Test active installation	Test the PSQL installation in three ways: network connectivity, functionality of the MicroKernel Engine, and functionality of the Relational Engine. Select the options that correspond to the tests you wish to perform.	Test Active Installation Tasks
Test network	Test the network connectivity to a machine running the database engine. The network tests display detailed information about any problems encountered during the test and provide suggestions on how to remedy the problems. If you do not have Internet Explorer installed, this test is not available because the test uses an embedded HTML component to display results.	To test your network
Test transactional engine	Tests the functionality of the MicroKernel Engine.	To test the MicroKernel (transactional) Engine
Test relational engine	Tests the functionality of the Relational Engine.	To test the Relational Engine
Log file	Allows you to specify a different log file location than the default. PSA logs detailed information on the tests it performs. You can use this log file to review tests at a later time or to forward them to PSQL Technical Support depending on the situation. The Append to the log file option adds content to the end of the log file to provide a running history. If this option is cleared, the log file starts anew and only information from the current PSA session is captured.	To specify a different location for the PSA log file
